Measurement principle
- High-speed image projection and data acquisition
- Fringe projection with phase shifting
System parameter
| Single measurement field | 325 mm * 200 mm |
| Measurement uncertainty | 20 µm - 100 µm |
| Data acquisition time | < 0,25 s |
| Number of views | frei wählbar |
| Resolution | 170 µm |
| Number of pixels | 2048 * 1280 Pixel |
| Sensor weight | 3,6 kg |
Features

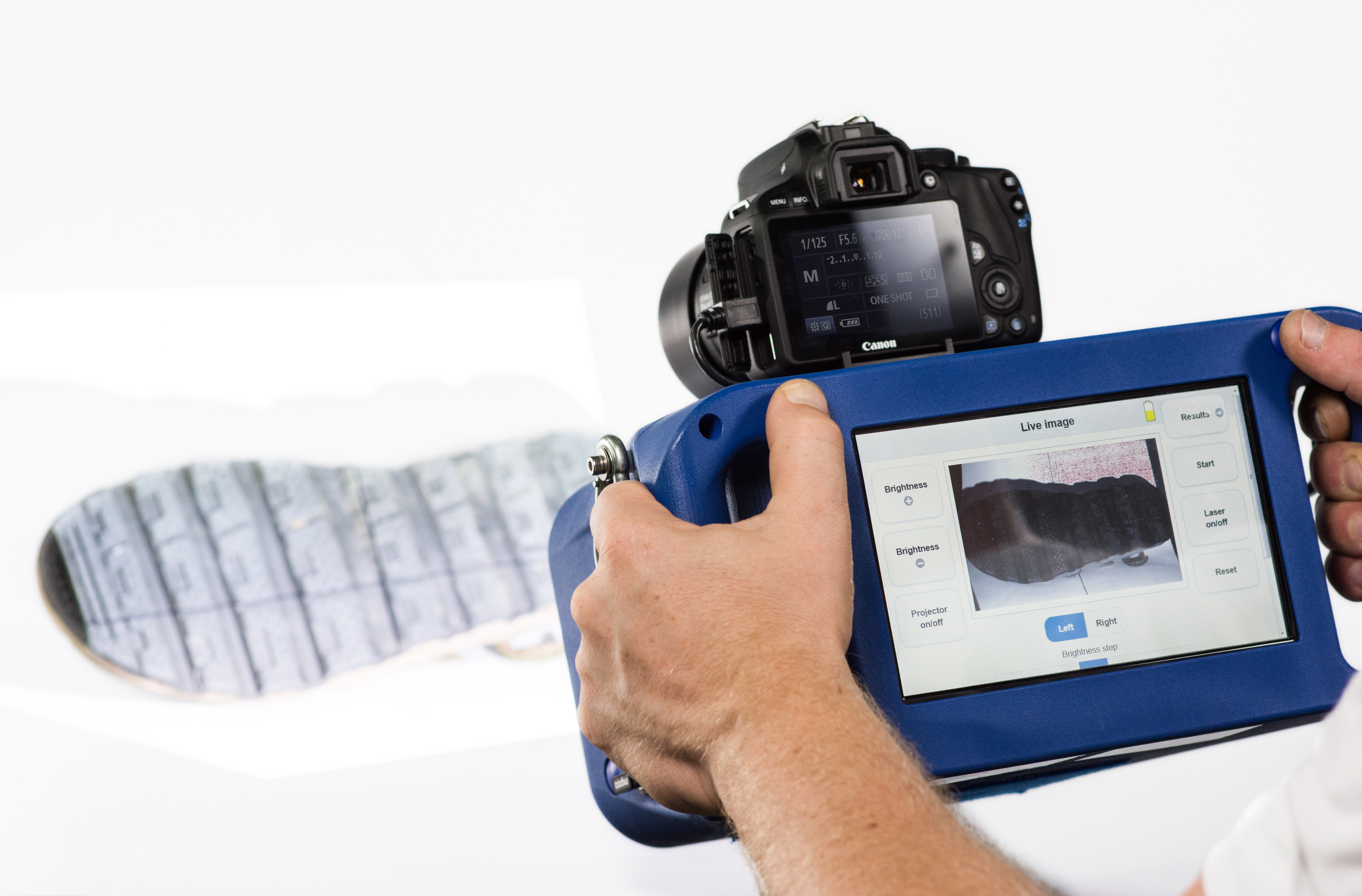

- Hand-held operation (quick data acquisition, light weight and ergonomic)
- Unconstrained sensor placement (no external tracking, no positioning targets, complete freedom of movement)
- Cordless design (WLAN data connection, battery powered)
- User friendly (user interface via iPod touch, simple handling, easy to set up and scan)
- Mobility (transport within a case)
- High resolution colour and texture scanning (optional)
Our offer
- Development and production of sensors, quality assurance, rapid prototyping, design, CAD/CAM according to customer requirements
- Process integration
- 3D data acquisition and analysis for forensic investigations
