Table-top system for light scatter measurement »Albatross-TT«

System description

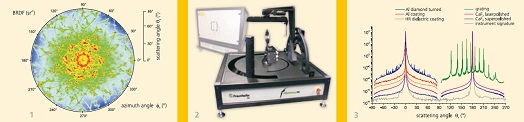

The new table top system ALBATROSS-TT (3D-Arrangement for Laser Based Transmittance, Reflectance and Optical Scatter measurement – Table Top) enables high sensitive measurements of angle resolved light scattering, reflectance and transmittance of optical and non-optical surfaces, materials and components within the entire 3D-sphere.



Applications

Characterization of surfaces, coatings, and materials:

• Quality control, appearance

• Optical performance

• Roughness analysis



Specifications

• Measurement of light scattering (ARS, BRDF, BTDF, scatter loss), θ-2θ, R and T

• Full 3D-spherical measurement capability

• In- and out-of-plane mode

• Flexible variation of incident angle, scattering angle (azimuth and polar angles), and polarization

• Area raster scans of sample surface

• Housed table top system (< 1 m³)

• Dynamic range: 13 orders of magnitude

• Noise equivalent ARS: 3x10^-08 sr^-1

• Roughness equivalent sensitivity: < 0.1 nm

• Wavelength: 405 nm, 532 nm, and 640 nm (other wavelengths on demand)

• User-friendly software for measurement control and data analysis

• Analysis tools: roughness, PSD, etc.
