Space Telescope Optical Image Corrector STOIC

Motivation

Next generation UVOIR space telescopes with primary mirrors larger than four meters are forecasted to answer important questions in astronomy. However, these instruments are exposed to harsh environmental conditions in launch and operation and their optical quality will consequently decrease. An active optical correction chain can measure and compensate for aberrations within the telescope using wave front sensing and deformable mirrors.

© Fraunhofer IOF

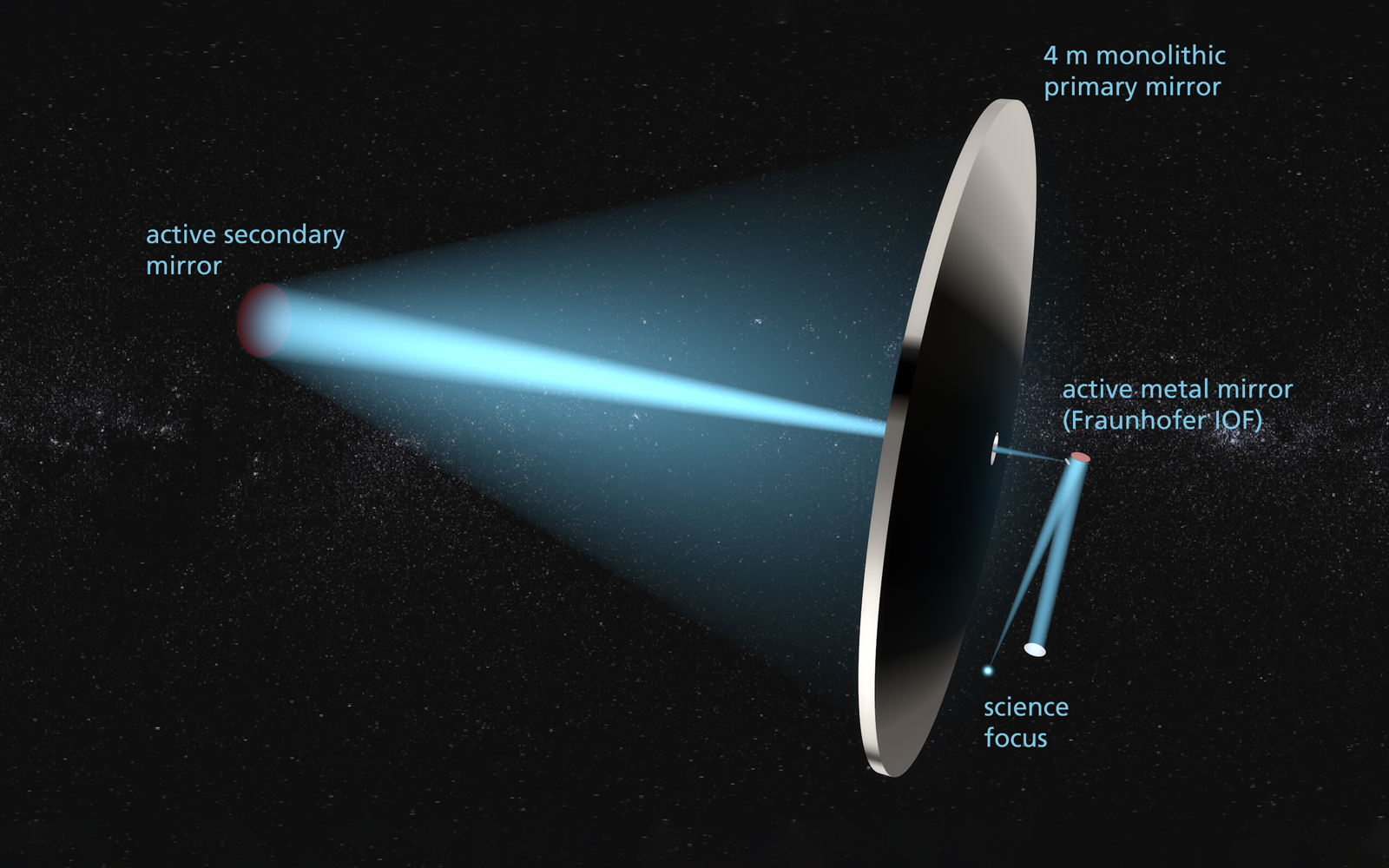

»HYPATIA Space Telescope« - an active secondary and the Fraunhofer IOF active metal mirror were integrated for aberration correction.

Goal

Within the project STOIC, Fraunhofer IOF and NUI Galway developed a concept for such a correction chain. The baseline scenario was the ‘HYPATIA Space Telescope’, a Ritchey-Chrétien reflector with a 4-meter-primary mirror. With the help of analytical and numerical simulations, we created an optomechanical design and manufactured a breadboard to demonstrate the functionality of the entire system – the wave front sensor, deformable mirror and control algorithm. Typical aberrations of the space telescope’s mirrors were replicated using a phase plate for correction using the active mirror. Fraunhofer IOF concentrated on the design concept and the subsequent mechanical design and manufacturing of a spherical shaped active metal mirror.

© Fraunhofer IOF

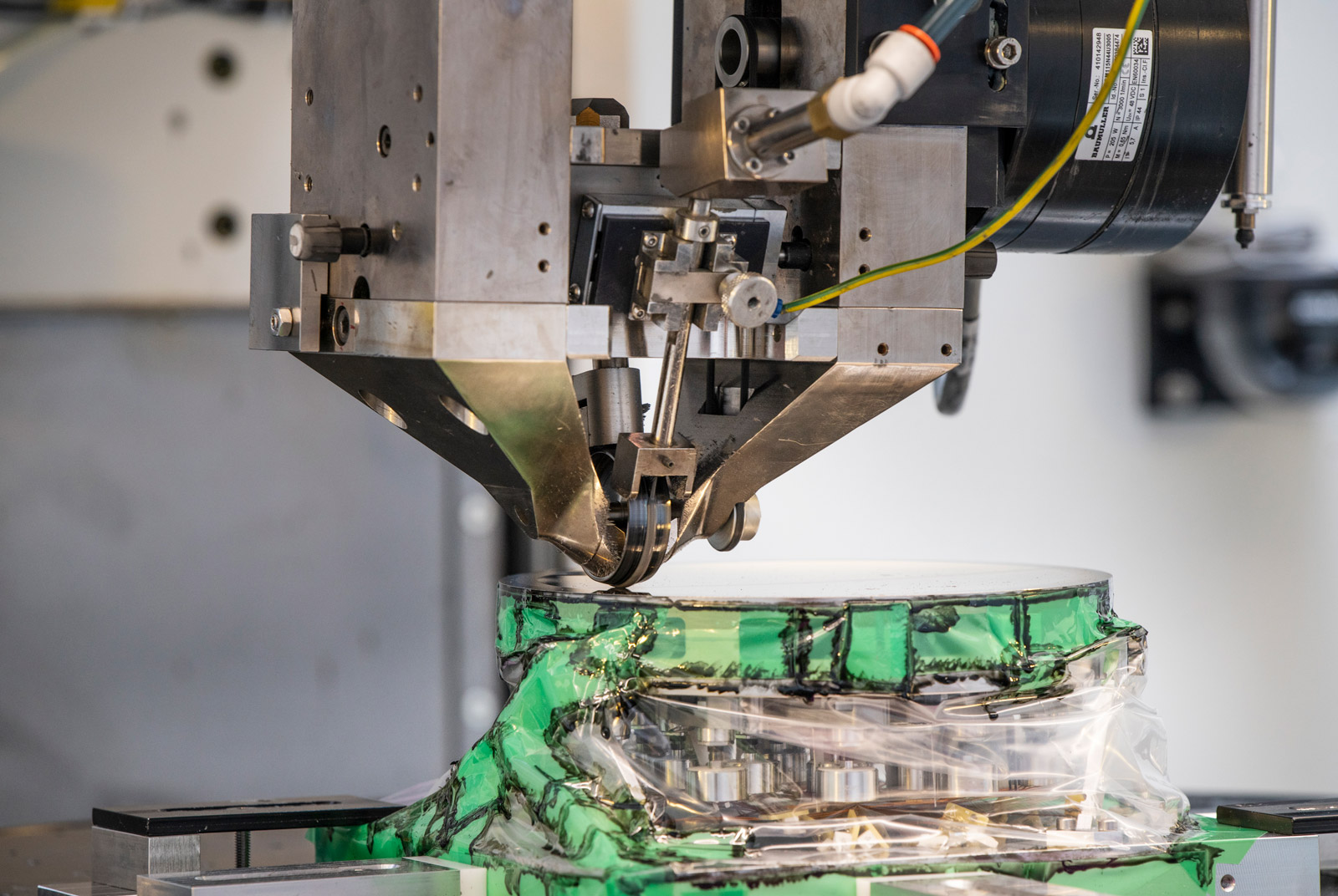

Magnetorheological finishing (MRF) of the fully assembled active metal mirror.

Results

The theoretical analyses and the mechanical design lead to the fabrication of the active metal mirror in a sophisticated manufacturing process. Through ultraprecision diamond turning and magnetorheological finishing (MRF), we acheived a low surface error of less than 100 nm RMS within the optical pupil (100 mm diameter). Implementation of the active optics mechanisms through activation of the 25 'set-and-forget' actuator mechanics reduced this to a final surface error of 15 nm RMS. Integration of the mirror into a test breadboard from our partner NUIG enabled the correction of specified Zernike modes of anticipated aberrations. Most of these aberrations could be corrected to within a maximum residual deviation of 20 nm RMS.

© Fraunhofer IOF

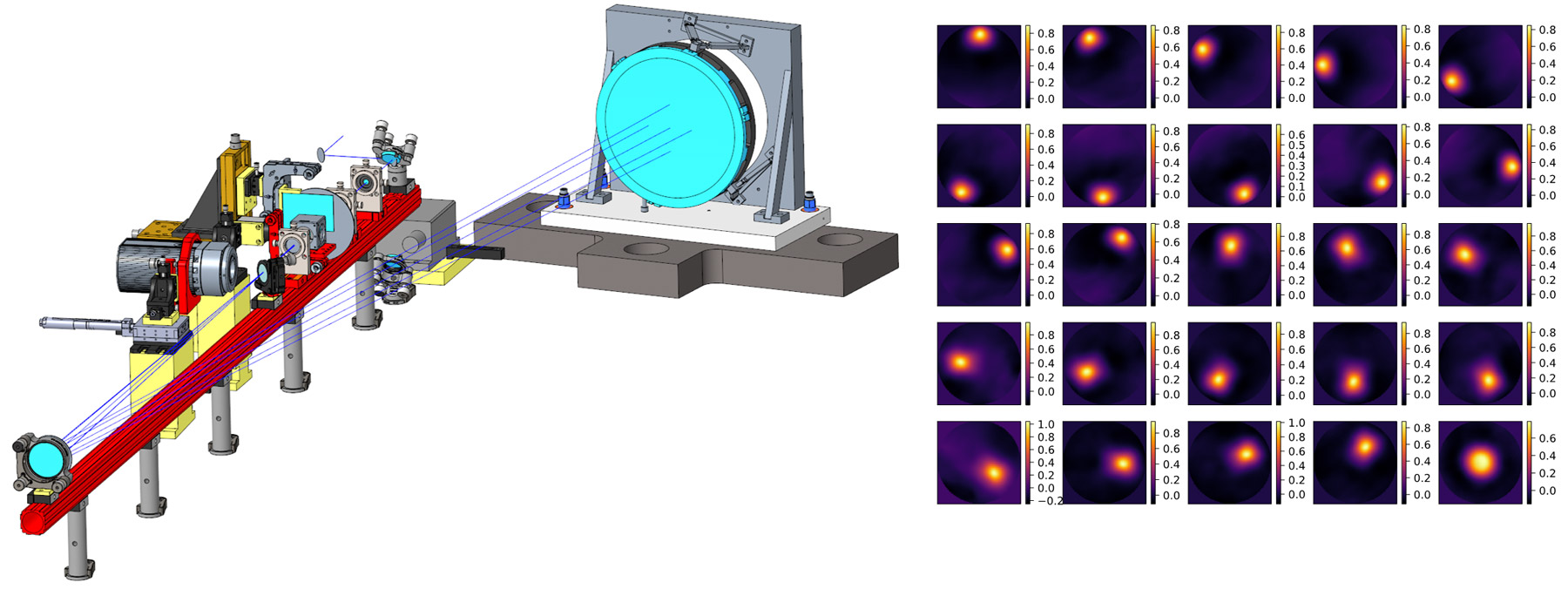

The optical breadboard consists of wavefront measurement devices, the active metal mirror and a control algorithm to compensate for typical aberrations (left). Measured actuator influence functions of the 25 set-and-forget actuator mechanisms (right).
© Fraunhofer IOF

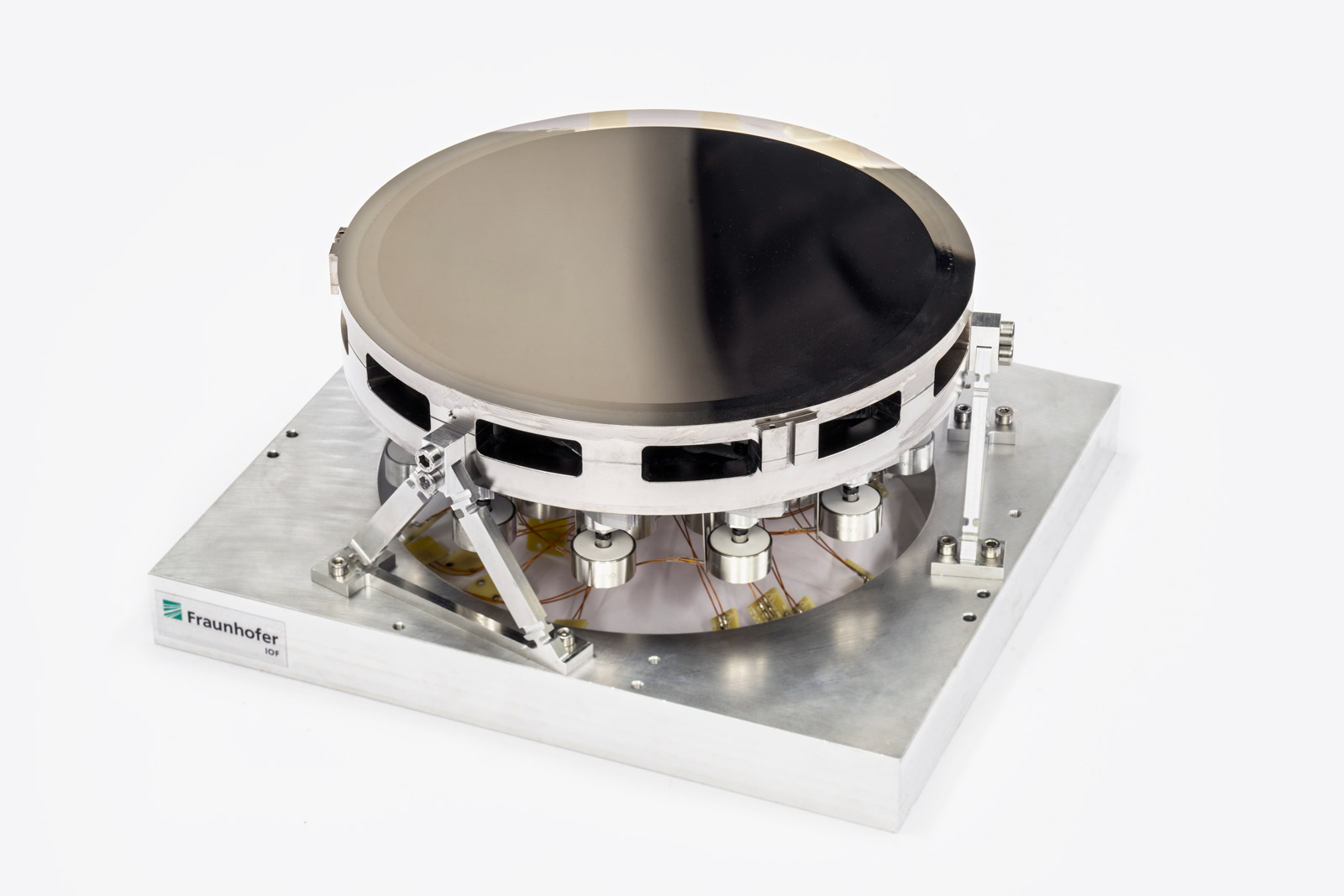

Final mirror demonstrator with a spherical mirror shape, an optical pupil of ~100 mm and an overall weight of about 2.5 kg.

References

  • N. Devaney, F. Kenny, A. Goncharov, M. Goy, and C. Reinlein, “Development of a prototype Active Optics system for future Space Telescopes”, Appl. Opt. 57(22), E101-E106, 2018
  • Kenny, F., Devaney, N., Goncharov, A., Goy, M., Reinlein, C., “An active optics system for large UVOIR space telescopes”, Proc. SPIE 10698, Space Telescopes and Instrumentation 2018: Optical, Infrared, and Millimeter Wave, 106986C, 2018
  • Goy, M., Reinlein, C., Devaney, N., Kenny, F., Eberhardt, R., Tünermann, A., “Design of an active metal mirror for large space telescopes”, Proc. SPIE 10703, Adaptive Optics Systems VI, 107037A, 2018
  • Devaney, N., Goncharov, A., Goy, M., Reinlein, C., Lange, N., “HYPATIA – a 4m active space telescope. Concept and Capabilities” , International Conference on Space Optics, Biarritz, 2016
  • Goy, M., Reinlein, C., Devaney,N., Goncharov, A., “Design study for an active metal mirror: Sub-system of a correction chain for large UVOIR telescopes”, International Conference on Space Optics, Biarritz, 2016
  • Devaney, N., Reinlein, C., Lange, N., Goy, M., Goncharov, A., Hallibert, P., “HYPATIA and STOIC: an active optics system for a large space telescope”,  Proc. SPIE, 9904,  2016


The funding support of the European Space Agency ESA is gratefully acknowledged. This work is funded by ESA under contract number AO/1-7955/14/NL/KML.
