Technical concept

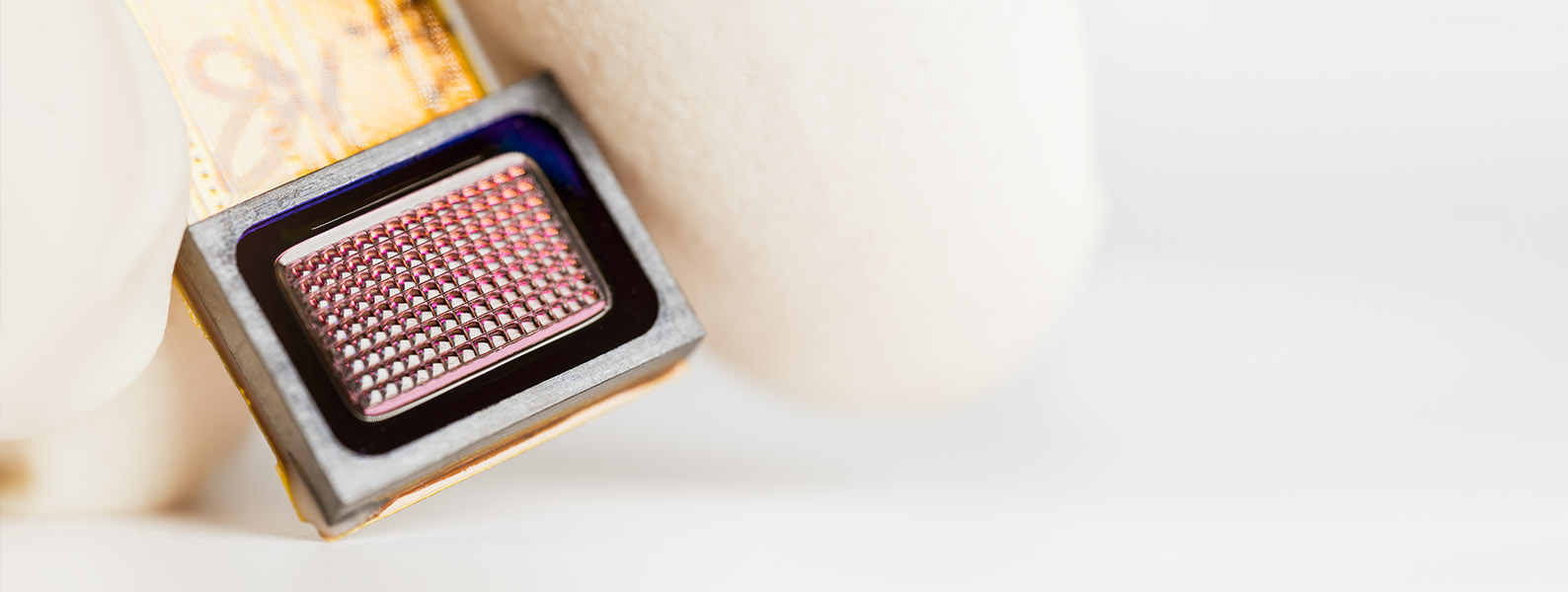

- Microlens array on front side of thin glass substrate with a thickness according to focal length of the microlenses
- Integrated on an optoelectronic image sensor (CCD, CMOS) with different pixel pitch compared to the microlens array
- Pitch-difference enables different viewing directions of each optical channel
- Channel-wise adapted microlenses for correction of aberrations
- Optical isolation of channels for the suppression of optical cross-talk
Exemplary parameters
- Optical system length 300 μm
- 150 x 100 channels / pixels
- Channel size 50 μm
- F/# = 2 to 4
- Field-of-view 80° x 65°
- Pixel size 3μm
Wafer-scale technology
- Origination of lens arrays by reflow of photoresist or laser lithography
- Structuring of aperture arrays on thin glass substrate (lithography)
- UV-molding of lens arrays in inorganicorganic hybrid polymer
- Dicing, assembly with CMOS-imager
Our work
- Optical design, prototyping and characterization of microoptical imaging systems for custom-specific applications
- Provide imaging solutions for tightest working spaces
Typical applications
- Machine vision, Sensors
- Security and surveillance
- Medical imaging
