Motivation
The quality of high precision optics strongly depends on centering and positioning of the lenses. By machining the lens housing with respect
to the optical axis the precision of the single lens can be ideally implemented into the optical assembly. The assembly becomes reproducible, extensive
adjustments are no longer required.
Parameters
- Centering accuracy:
- Tilt 0.1 arcmin
- Decenter < 2 μm
- Machining tolerances regarding vertex height and outer diameter < 2 μm
- Flatness of plane surfaces < 1 μm
- Cylindricity of housing < 0.5 μm
Lens centering machine

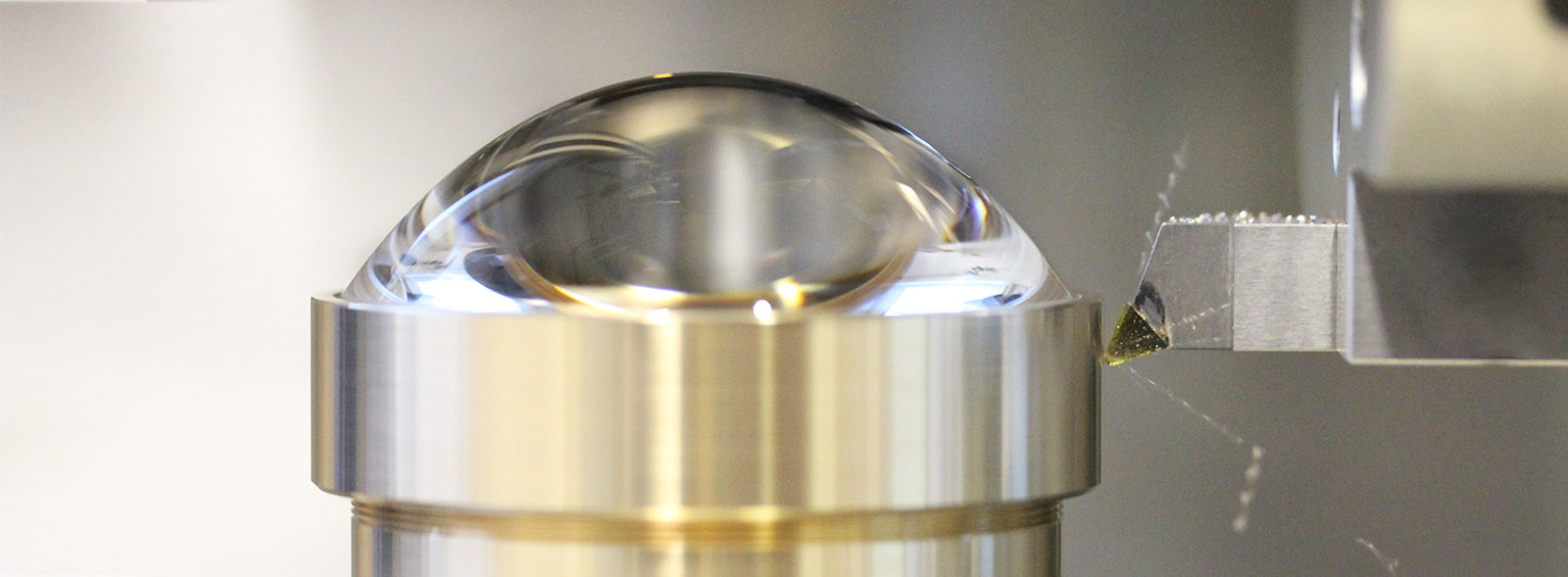

The basis of the centering machine provides a vertical lathe from Lehmann Präzision GmbH with a compact and stiff natural granite base, high precision linear slideways, and a hydostatic spindle. The alignment chuck – developed at Fraunhofer IOF – aligns the optical axis and the spindle axis using impulse drives. Therefore, the decentration of the lens is measured by a collimator. If the lens is centered, its housing is machined by CNC controlled turning.
Our offer
We develop customized lens centering machines and assembly technologies for high precision optics.
