Real-Time Capable In-Line 2D and 3D Measurement Systems

Highly integrated real-time capable in-line 2D and 3D measurement systems



Challenging and industry-compliant continuous measurements of complex objects with impressively short cycle times on conveyor belts or in robot handling in automated inspection systems.



We specialize in measurement solutions for special applications that go beyond conventional standard solutions. Our dedicated team of scientists and technicians test, develop and implement innovative in-line 2D and 3D measurement systems according to the individual requirements of our customers and research partners. With our experience, we bring your tailor-made solutions from the idea to the application and support you in the further optimization of your production processes even after successful launching.

Our services



Our solutions enable continuous measurements with impressively short cycle times. With our customized data processing, we offer smart evaluation and further processing of the measurement results for maximum effectiveness.

  • Precise inline inspection of industrial products with maximum accuracy
  • Advanced measurement systems for inspection on the assembly line
  • Continuous measurements of large objects with minimum cycle time
  • Individual data preparation for effective evaluation and further processing of measurement results
  • Integration into automated inspection systems for seamless functionality
  • Remote maintenance option and automated recalibration

We support you in the development and integration of real-time capable in-line 2D and 3D measurement systems in complex industrial plants. We develop solutions and deliver quality reports, customized operating concepts and result visualizations as required. We also provide support with the coupling to PLC control systems and integration into MES systems.

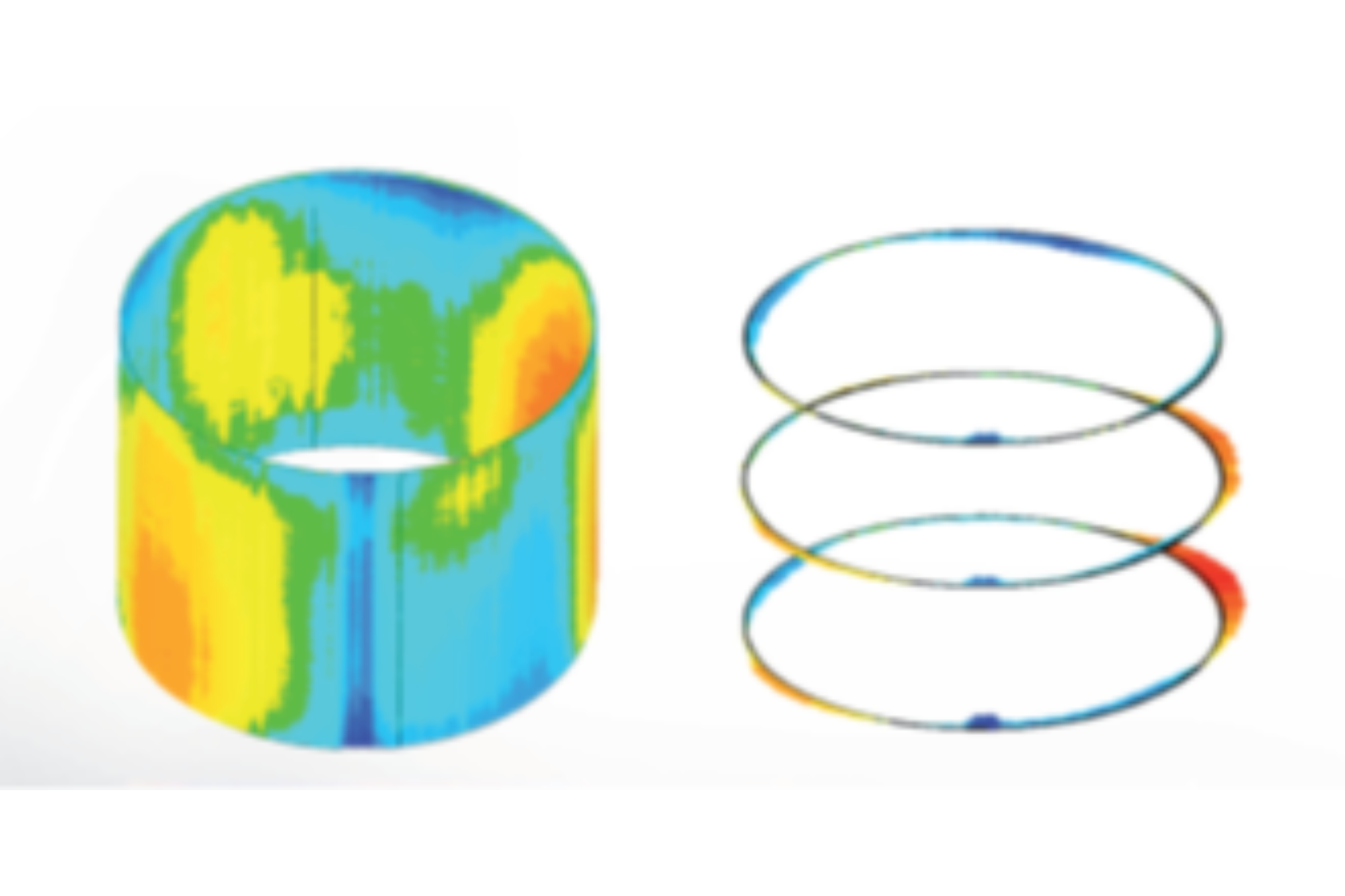

Depiction of the measurement deviation of an object compared to the target geometry
© Fraunhofer IOF
Depiction of the measurement deviation of an object compared to the target geometry

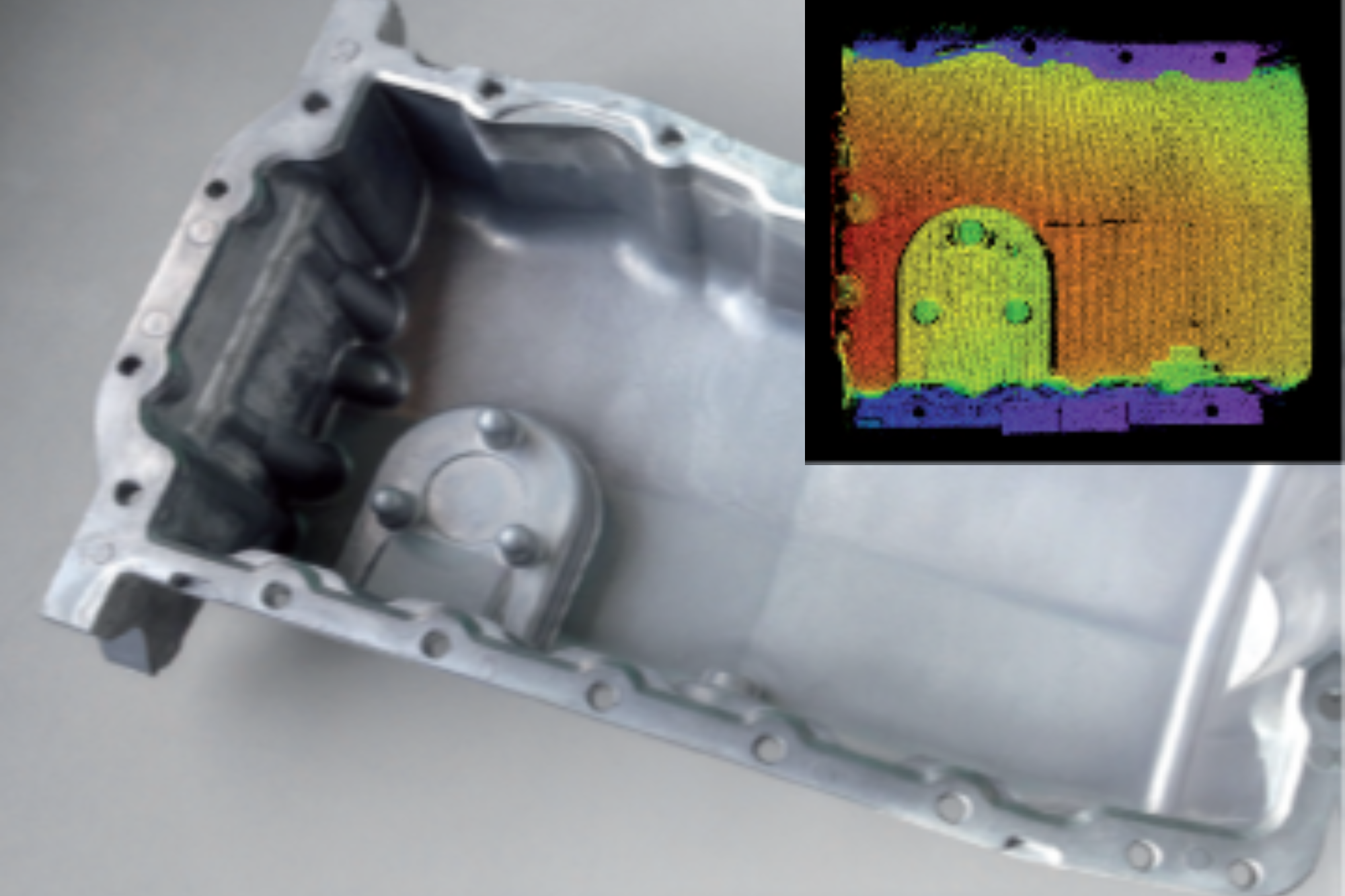

3D point cloud of a technical object
© Fraunhofer IOF
3D point cloud of a technical object

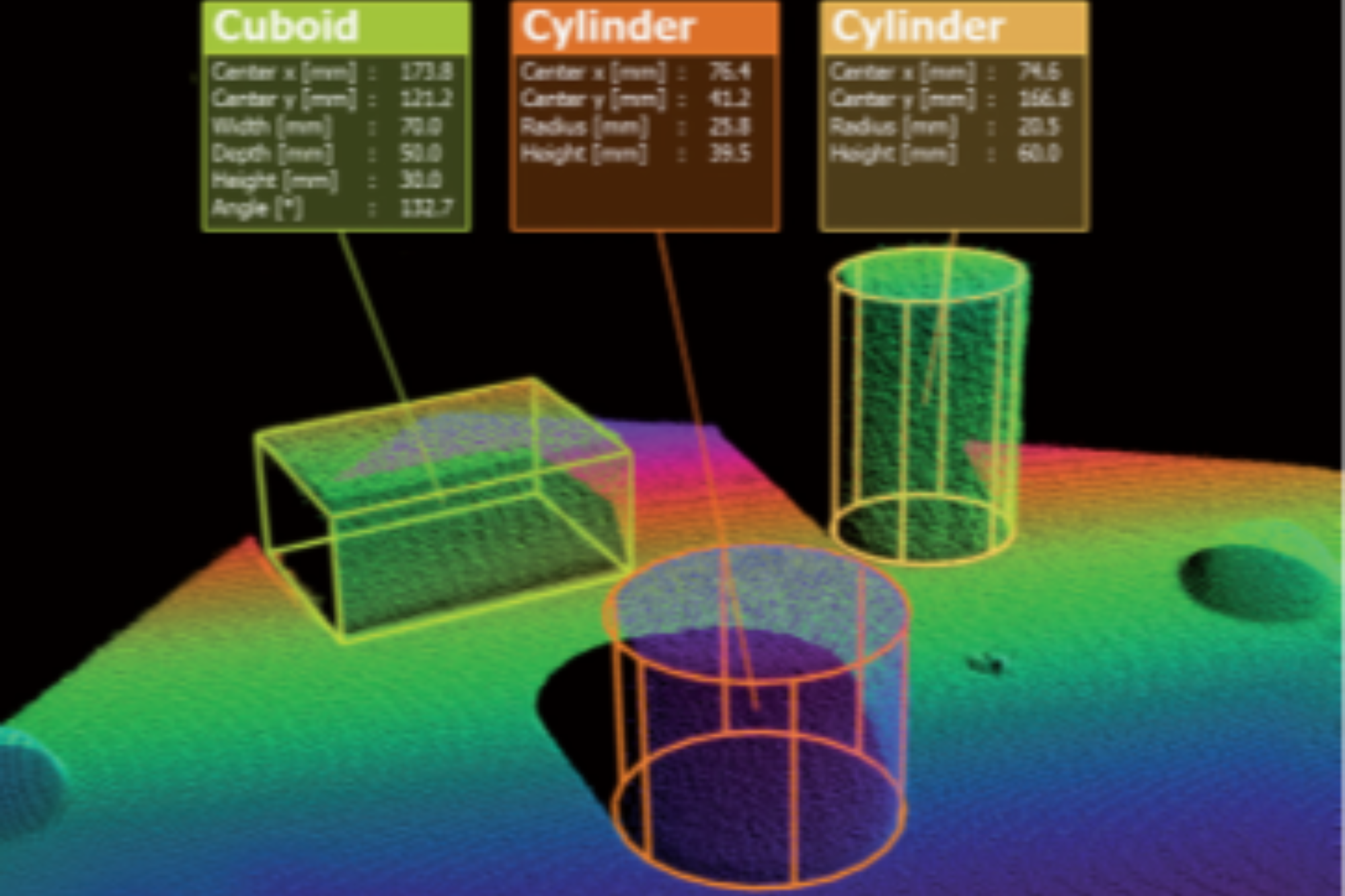

Live 3D data evaluation - recognition and measurement of geometric objects in a space
© Fraunhofer IOF
Live 3D data evaluation - recognition and measurement of geometric objects in a space

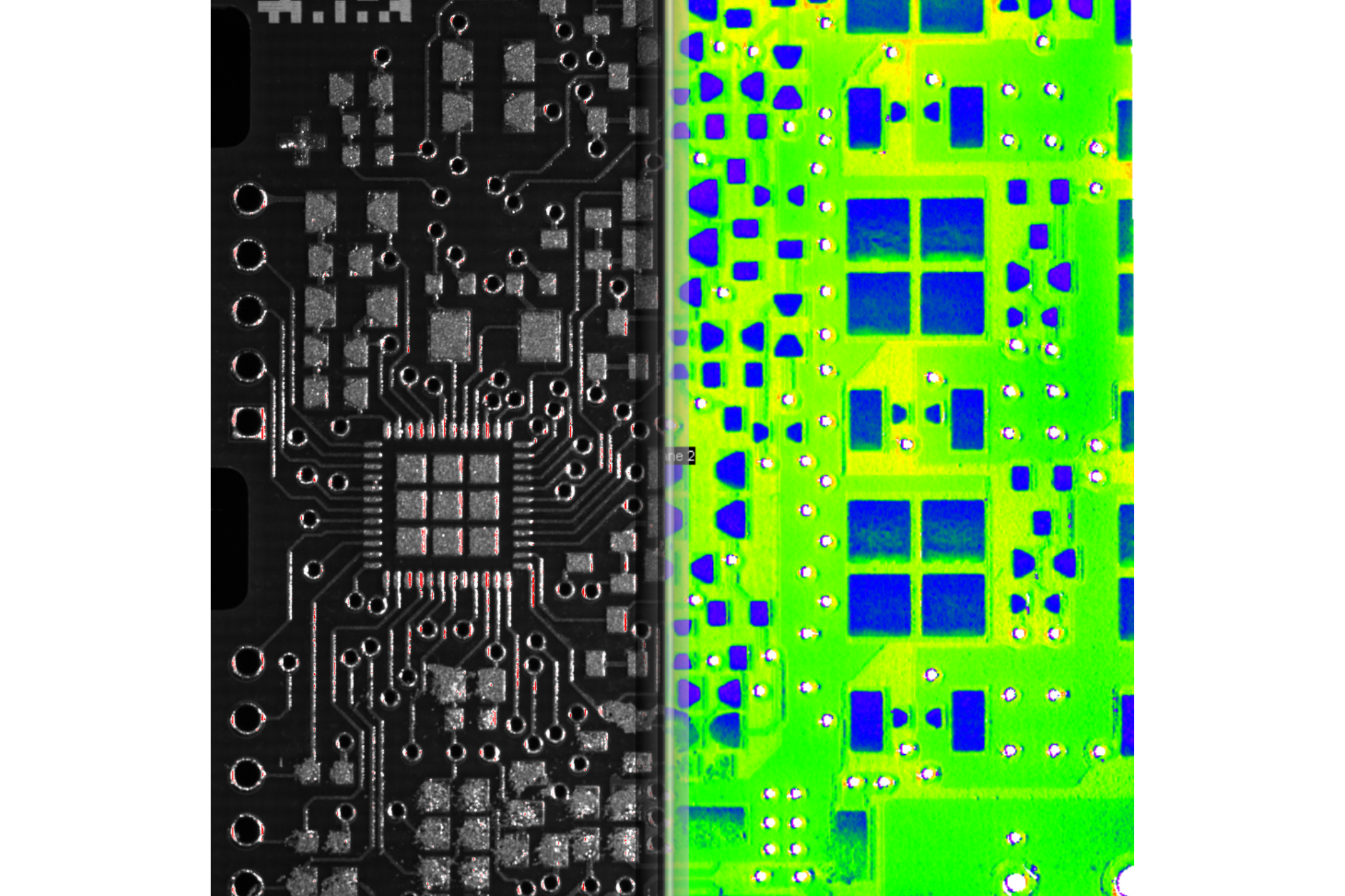

Printed circuit board (left), measurement result of the applied solder paste with color-coded height values (right)
© Fraunhofer IOF
Printed circuit board (left), measurement result of the applied solder paste with color-coded height values (right)
